Kadee Item #: 810

Details:

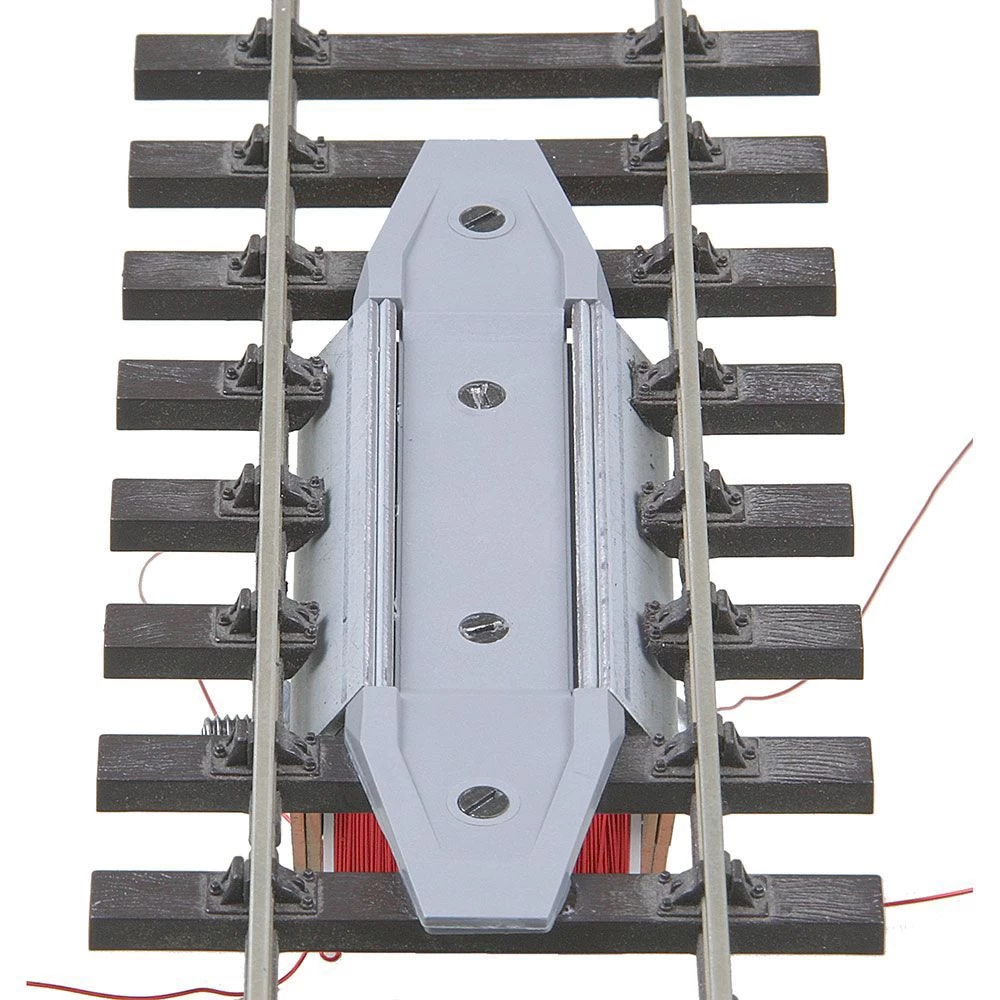

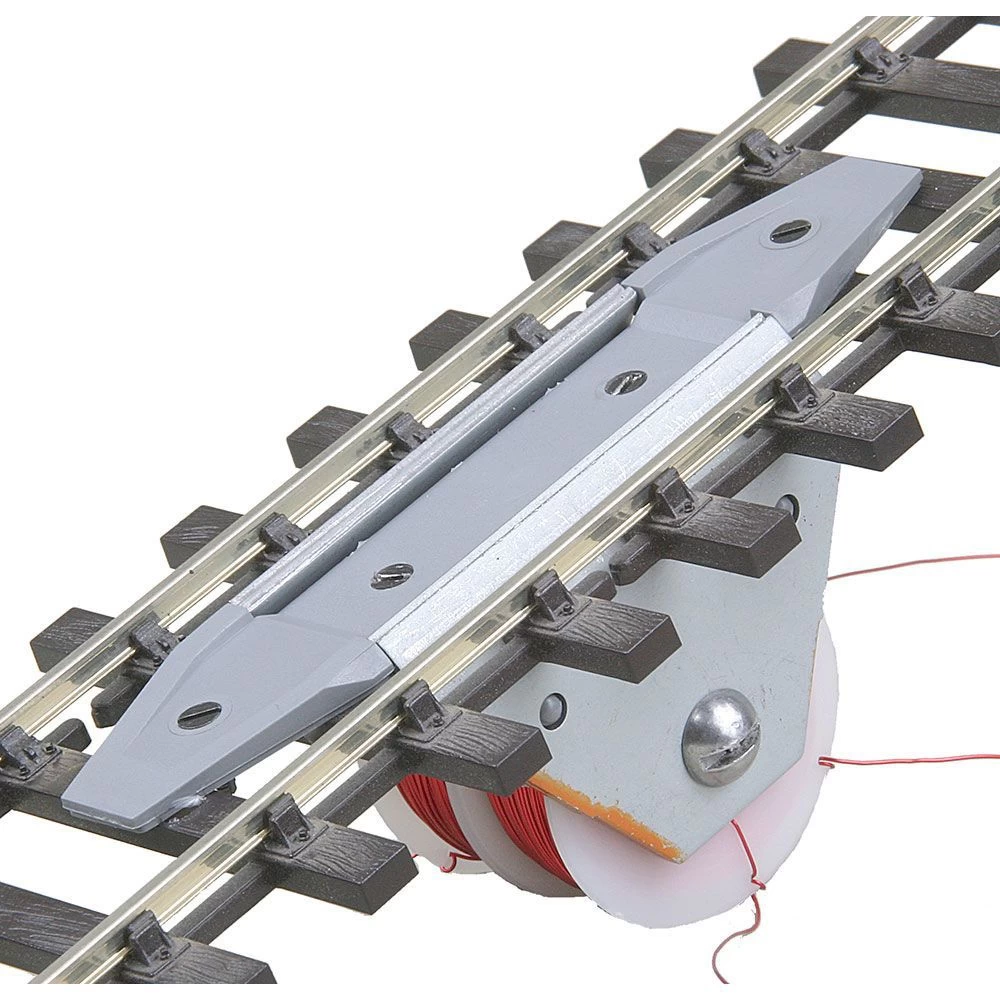

#810 Thru-the-Ties Delayed-Action Electric Uncoupler Kit – O Scale

Kadee® #165 Red – Normally Open momentary contact push button switches are recommend.

This package contained one O Scale Magne-Electric electromagnetic, delayed action uncoupler kit, ready to assemble and install Thru-the-Ties. It can be installed on any straight layout track, but especially on mainlines, were false uncoupling my occur.

Operates: 16 volt DC.
We recommend a 16 volt DC power source (at least 2 Amps) or 12-20 volt AC power source (at least 2 Amps) converted to DC with bridge rectifier*. (*bridge rectifier & capacitor not included)

Fits codes 100, 125, 156 and 172 track.

WARNING: Do not use the uncoupler continually. DO NOT activate the uncoupler for longer than 3 MINUTES at one time.
This will avoid possible overheating which will damage the uncoupler.

Track not included

#810 Instructions

One per package
